Command line / Reference

Every command

Every penstock command, one by one: what it does, its options, an example, what it needs and its exit codes.

Free

All commands at a glance

A command marked Pro, Team in a pipeline is a paid one. One rule decides what it needs: Pro on your machine, Team in a pipeline, which is any run where CI is set. See Paid commands. penstock help and penstock --version print the overview and the version, and penstock <command> --help prints the page of one command, with the same options, example, tier and exit codes as here.

Options that many commands share

Exit codes

Every command lists its own exit codes below. They follow one rule.

A command that produces a findings table and finds something exits with 1 and still writes the table to standard output. A refusal, such as a missing path or a licence message, goes to standard error. A machine format (json, sarif, github) is always written to standard output, even when it reports errors.

init

Write a penstock.yaml for this project: the engine it runs on, the rules, the profiles and the deployment. Asked in a terminal when the folder is empty and nothing says otherwise.

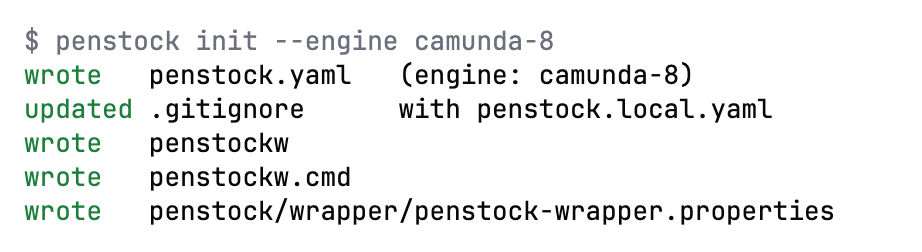

penstock init [folder] [--engine camunda-8|camunda-7|operaton|cib-seven|classic] [--ci github|gitea|gitlab|bitbucket|azure] [--hooks]

1. Writes penstock.yaml with the engine you chose, or guessed from your diagrams. If a file exists, it is kept and the command says so.
2. Adds penstock.local.yaml to .gitignore.
3. Installs the wrapper: penstockw, penstockw.cmd and penstock/wrapper/penstock-wrapper.properties. See The wrapper.

In a terminal, on an empty folder with no --engine, init asks which engine with a numbered choice. Anywhere else it guesses from the diagrams. --example writes a small runnable project into an empty folder: see The example project. --ci also writes a pipeline for the licence on this machine, and forgejo is accepted too although the help does not list it: see Pipelines, reports and the bot. --hooks installs a pre-commit hook that formats and checks the diagrams a commit carries. It lives in .git/hooks, so it is yours, and deleting the file stops it. It runs check --baseline, which needs Pro.

Example

$ penstock init --engine camunda-8

Needs: Free

doctor

Check the setup: which configuration layers are in force, which profiles, rules, element templates and engine.

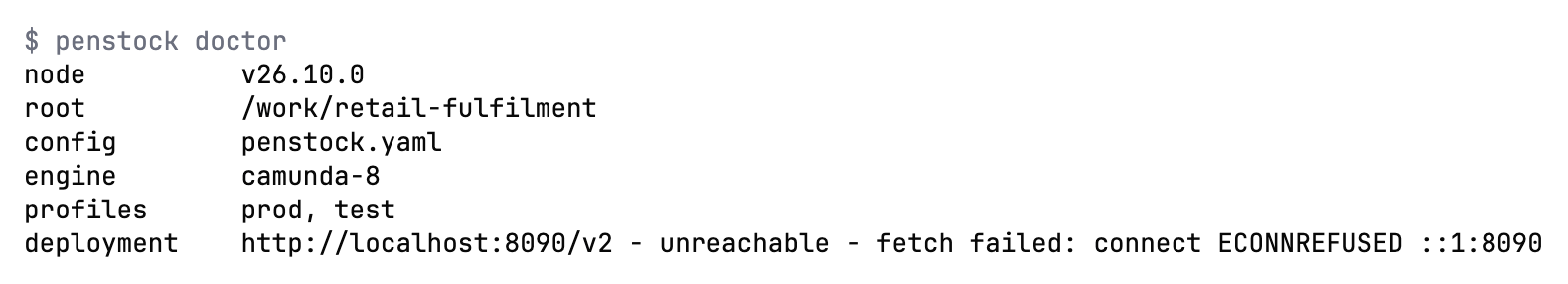

penstock doctor [folder] [--format json]

$ penstock doctor
node        v26.10.0
root        /private/tmp/pex
config      penstock.yaml
engine      camunda-8
profiles    (none)
deployment  http://localhost:8080/v2 - answered 404

It prints the Node version, the project root, the configuration files that apply, any problem in them, the engine, the profiles (a star marks the one in force), the rules file and the element template paths (marked missing when they are not there), and whether the deployment address answers, with a 4 second timeout. It also says when the deployment credentials are incomplete. --format json prints the settings as they resolve after every layer.

Example

$ penstock doctor --format json

Needs: Free

check

Everything wrong with the diagrams, in sections: the drawing itself, the bpmnlint rules and, on Pro, how the processes, decisions and forms actually run.

penstock check [paths...] [--only drawing,rules,flow] [--format text|json|sarif|github] [--baseline] [--update-baseline]

$ penstock check .
ok    src/main/resources/approve-order.form
fail  src/main/resources/order-process.bpmn
        OVERLAP: approve_order <-> charge_card
        note bpmnlint/no-overlapping-elements: Element overlaps with other element (approve_order)
ok    src/main/resources/shipping-method.dmn

Checks .bpmn, .dmn and .form files in three sections: drawing, rules (bpmnlint, and the engine compatibility rules) and flow (how the processes, decisions and forms run). Only errors fail the command. The form check is lint and is free. Flow analysis of processes and decisions is paid. --update-baseline writes the findings to penstock-baseline.json: commit it, and refresh it after an upgrade. --trust-project lets this project's hooks run for this one run, without recording anything. Hooks: preCheck and postCheck. See Diagram check, Validation and Flow analysis.

Example

$ penstock check --only rules src/orders

Needs: Free With --only flow, --baseline or --format sarif|github: Pro, Team in a pipeline

migrate analyze

Read the Camunda 7 diagrams and say what does not carry over to Camunda 8, and why.

penstock migrate analyze [paths...] [--format text|json|sarif|github] [--baseline] [--update-baseline]

penstock migrate [analyze|convert|report] [paths]. Without a word it runs analyze. The full description is on Camunda 7 to 8. All three take the options below; --target takes a version from 8.5 to 8.9, and the help names 8.8 as the default.

Example

$ penstock migrate analyze src/orders

Needs: Free With --baseline or --format sarif|github: Pro, Team in a pipeline

migrate convert

Write the Camunda 8 files into a camunda-8 folder next to the one given, with a penstock.yaml of their own. Nothing else in the project is touched.

penstock migrate convert [paths...] [--target 8.5..8.9] [--out <dir>] [--dry-run]

Writes the Camunda 8 files into a camunda-8 folder next to the one given, with a penstock.yaml of their own that says engine: camunda-8. Nothing else in the project is touched, so the Camunda 7 files stay as they are. --out chooses another folder. --dry-run says what would be written and writes nothing.

Example

$ penstock migrate convert --target 8.8 --dry-run src/orders

Needs: Pro, Team in a pipeline Analysis and the report are free.

migrate report

Write the migration report to hand on: what each diagram became, and what did not come across.

penstock migrate report [paths...] [--out <dir>]

Writes the migration report, Markdown and one self-contained HTML page: what each diagram became and what did not come across.

Example

$ penstock migrate report --out docs

Needs: Free

code

Check the diagrams against the code: job types, topics, classes and beans with nothing to run them, and workers no diagram uses.

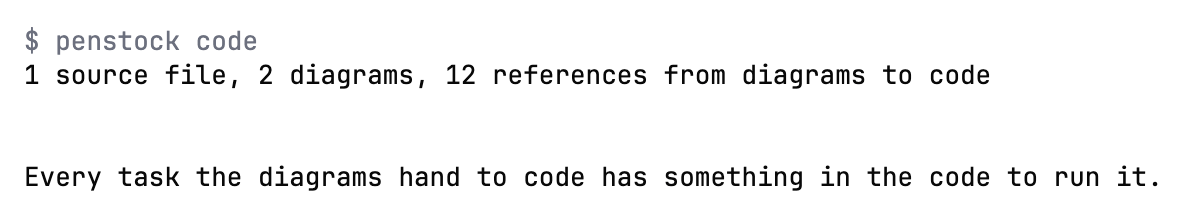

penstock code [paths...] [--format text|json]

Reports a job type, topic, class or bean that nothing runs, a called process no diagram defines, and a worker no diagram uses, each with file and line. Reads the repositories in linked. See Code links.

Example

$ penstock code src/orders

Needs: Pro, Team in a pipeline

templates generate

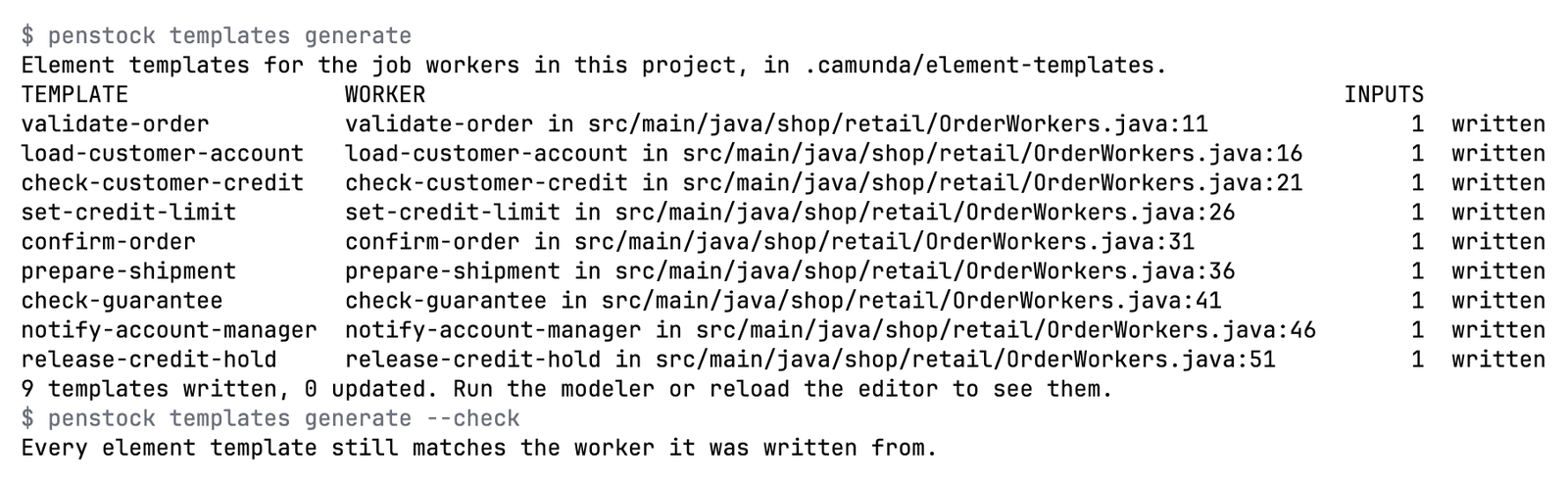

Write an element template for every job worker the project has, into .camunda/element-templates, so the Camunda palette fills itself in.

penstock templates generate [folder]

Reads the Java, Kotlin, Groovy and Scala sources under the folder, finds every job worker, and writes an element template for each into .camunda/element-templates. A template that exists is updated, not replaced. It lists each template with its worker, file and line, the number of inputs, and what it did. With no worker in the project it exits with 1. --check writes nothing and does what templates check does. The editors do the same for one worker with Create element template. See Element templates.

Example

$ penstock templates generate

Needs: Pro, Team in a pipeline

templates check

Check that every element template still says what its job worker asks for, and that every worker has one. Writes nothing.

penstock templates check [folder]

Checks that every element template still asks for what its worker reads, and that every worker has one. A template that has drifted is listed with what it is missing, what it has extra and what has another type, and the exit code is 1, so it works in a pipeline. With no templates in .camunda/element-templates it says so and exits with 0. It writes nothing.

Example

$ penstock templates check

Needs: Free

scenarios list

List every distinct way through each process, with the conditions it takes. This is a test plan.

penstock scenarios list [paths...] [--format text|json|md]

A test plan, in words: the path and the conditions that decide it. --format md writes a checklist a person can work through. --format json is for tools. See Process tests and coverage.

Example

$ penstock scenarios list --format md

Needs: Pro, Team in a pipeline

scenarios run

Run the Camunda test-case files of the diagrams against the engine they name, step by step, with the mocks the file asks for.

penstock scenarios run [paths...] [--timeout <seconds>] [--junit-xml <file>] [--junit] [--teamcity]

Runs the Camunda test-case files of the diagrams against the engine they name, step by step, with the mocks the file asks for. Every case is checked against the Camunda test-case schema before the run, and a run deploys a test build of its own, prefixed penstock.<run>., so the definitions you deployed are not touched. In a pipeline the engine needs deployment.forTests: true. Press Ctrl and C once to ask the engine to stop and keep going, and twice to cancel the running case and remove its build. See Scenarios.

Example

$ penstock scenarios run --junit-xml target/scenarios.xml

Needs: Pro, Team in a pipeline

scenarios generate

Write the Camunda test-case files from the ways through each process, which scenarios run then plays back against an engine.

penstock scenarios generate [paths...]

Writes the Camunda test-case files from the ways through each process: one scenario for every way through, with example variables and a completing mock for each task. A process that starts on a message, a timer or a signal is planned from that start event, and a start kind that cannot be expressed as a scenario is said in the review rather than left out quietly. Cases already in a file are kept. See Scenarios.

The old names still work and are left out of the help: paths is scenarios list, test-cases is scenarios run, test-cases --generate is scenarios generate, and tests is junit.

Example

$ penstock scenarios generate src/orders

Needs: Pro, Team in a pipeline

junit

Write a JUnit test for every way through each process, with the variables that take it there, for Camunda Process Test or camunda-bpm-assert.

penstock junit [paths...] [--out <dir>] [--package <name>]

Writes a JUnit test for every way through each process, with the variables that take it there, for Camunda Process Test or camunda-bpm-assert. The command names the test dependencies your build lacks, using each engine's own Java packages: org.camunda for Camunda 7, org.operaton for Operaton, org.cibseven for CIB seven. See Process tests and coverage.

Example

$ penstock junit --out src/test/java --package com.acme.orders

Needs: Pro, Team in a pipeline

layout

Lay the diagrams out as a readable left-to-right flow, whatever they were drawn like.

penstock layout [paths...] [--write]

$ penstock layout .
would change src/main/resources/order-process.bpmn

Auto layout always reflows, so a difference here is expected; pass --write to take it.

Lays the diagrams out as a readable left-to-right flow, whatever they were drawn like. Without --write the answer is the plan and nothing is changed. Hooks: preLayout, postLayout. See Auto layout.

Example

$ penstock layout --write src/orders

Needs: Pro, Team in a pipeline

fmt

Rewrite the XML the way the editor saves it, so a diff of a diagram stays readable.

penstock fmt [paths...] [--write]

Rewrites the XML the way the editor saves it, so a renamed task is a one-line diff. Without --write it lists each file as same or would rewrite and leaves the files alone, and it exits with 1 if any file would change, so it also works as a check in a pipeline.

Example

$ penstock fmt --write src/orders

Needs: Free

diff

What changed between two versions of a process: two files, or what the working tree changed since a commit, a branch or a tag.

penstock diff <before> <after> | penstock diff [<ref>] [paths...] [--images]

penstock diff before.bpmn after.bpmn     # two files
penstock diff main                       # working tree against a branch, tag or commit
penstock diff HEAD~3 src/orders          # limit to some paths
penstock diff main --images              # pictures with changes coloured

$ penstock diff HEAD
src/main/resources/order-process.bpmn
  changed  ServiceTask "Charge the card" charge_card (name)

Lists added, removed and changed elements by name, and says only the drawing moved when that is all. Without a reference it compares against HEAD~1. --out chooses where the pictures go, .penstock/images by default. It needs a Git repository for a reference.

Example

$ penstock diff HEAD~1 --images

Needs: Free With --images: Pro, Team in a pipeline

export

Render the diagrams as pictures, one file per diagram.

penstock export [paths...] [--format svg|png] [--out <dir>]

Renders the diagrams as pictures, one file per diagram. SVG is drawn by Penstock from the coordinates and needs no browser. --format png needs puppeteer installed in the project. See Export.

Example

$ penstock export --format png --out docs/diagrams

Needs: Free

share

One HTML file to send: a read-only viewer with zoom, pan and the documentation of each element. It opens offline, with nothing else on the page.

penstock share <file> [--out <file.html>]

Takes one .bpmn, .dmn or .form file and writes one HTML file: a read-only viewer with zoom, pan and the documentation of each element. It opens offline in any browser and loads nothing else. -o is the same as --out. See Share as HTML.

Example

$ penstock share src/orders/order.bpmn -o order.html

Needs: Free

import

Turn a draw.io, Visio, Signavio or Bizagi diagram into BPMN 2.0, and list what could not be mapped.

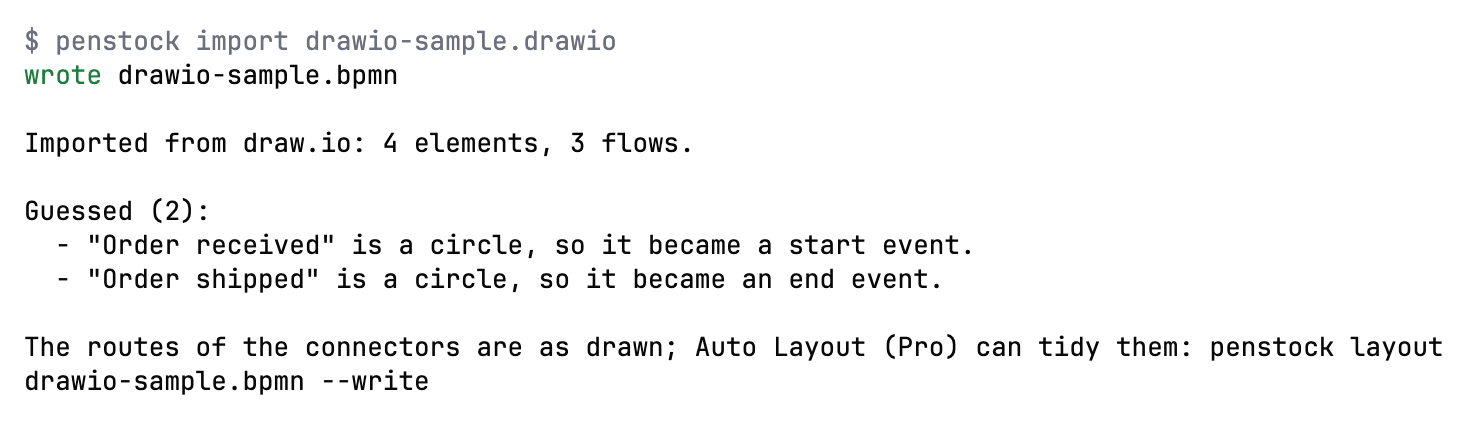

penstock import <file> [--out <file.bpmn>] [--force] [--format text|json]

Turns a draw.io, Visio, Signavio or Bizagi diagram into BPMN 2.0 and prints what was not imported, what was guessed and what was not carried over. -o is the same as --out. See Import a diagram.

Example

$ penstock import legacy.drawio -o order.bpmn

Needs: Free

docs

Write documentation for every process, decision file and form: a page each, with the picture, the steps, the decisions, the events and the data.

penstock docs [paths...] [--format html|md] [--out <dir>]

$ penstock docs . --out docs-out
wrote docs-out/approve-order.html
wrote docs-out/order-process.html
wrote docs-out/shipping-method.html
wrote docs-out/index.html

3 diagram(s) documented.

A page for each process: its picture, steps with what runs them and who, decisions and conditions, events, the data each step sets and reads, and whether it runs to its end. A page for each .dmn file with every decision's rules as a table, its hit policy in words and the table check. A page for each form with the variable every field writes. HTML by default, --format md for a wiki.

Example

$ penstock docs --format md --out docs/processes

Needs: Pro, Team in a pipeline

report

One markdown comment for a pull request: the check, the diff and a picture of every diagram that changed.

penstock report [folder] [--base <ref>] [--out <file.md>] [--images-dir <dir>]

Writes one Markdown comment for a pull request: the check, what changed and a picture of every diagram that changed, with the changes outlined. The defaults are origin/main for --base, penstock-report.md for --out and .penstock/images for --images-dir. --image-base is where the pictures will be served from, so the comment shows them, and --images-link is where to find them instead when they cannot be shown inline. It needs a Git repository. See Pipelines, reports and the bot.

Example

$ penstock report --base origin/main --out penstock-report.md

Needs: Pro, Team in a pipeline

bot

Answer in a pull or merge request, from the CI run it is in. penstock init --ci sets the pipeline up.

penstock bot [folder] [--stage draw|post]

Answers in a pull or merge request, from the CI run it is in. --stage draw draws the pictures now and --stage post posts later, when the pictures are uploaded between. penstock init --ci writes the pipeline. See Pipelines, reports and the bot.

Example

$ penstock bot --stage draw

Needs: Pro, Team in a pipeline

deploy

Deploy the processes, decisions and forms to the engine the configuration names.

penstock deploy [paths...] [--dry-run] [--wait]

$ penstock deploy . --dry-run
would send 3 file(s) to http://localhost:8080/v2/deployments as "order-example"
      src/main/resources/approve-order.form
      src/main/resources/order-process.bpmn
      src/main/resources/shipping-method.dmn

Deploys the processes, decisions and forms to the engine the configuration names. Files are grouped by the target each folder asks for, and a file with no deployment.url is skipped. --wait asks the engine until it shows the definitions: “deployed” and “running” are not the same claim, and it prints live order-process v3. Secrets come from PENSTOCK_PASSWORD, PENSTOCK_CLIENT_SECRET and PENSTOCK_TOKEN. Any PENSTOCK_* variable that matches a setting overrides it for the run. Hooks: preDeploy, postDeploy. See Deployment.

Before anything is sent, deploy says so when deployment.auth.type is basic and there is no PENSTOCK_PASSWORD, rather than letting the engine refuse it. An answer of 401 or 403 says which of deployment.auth in penstock.local.yaml, PENSTOCK_PASSWORD, PENSTOCK_CLIENT_SECRET or PENSTOCK_TOKEN to set. A password: key in penstock.local.yaml is not read.

Example

$ penstock deploy --dry-run src/orders

Needs: Free

show

List a diagram's elements, flows and properties, for a person or for a tool to read.

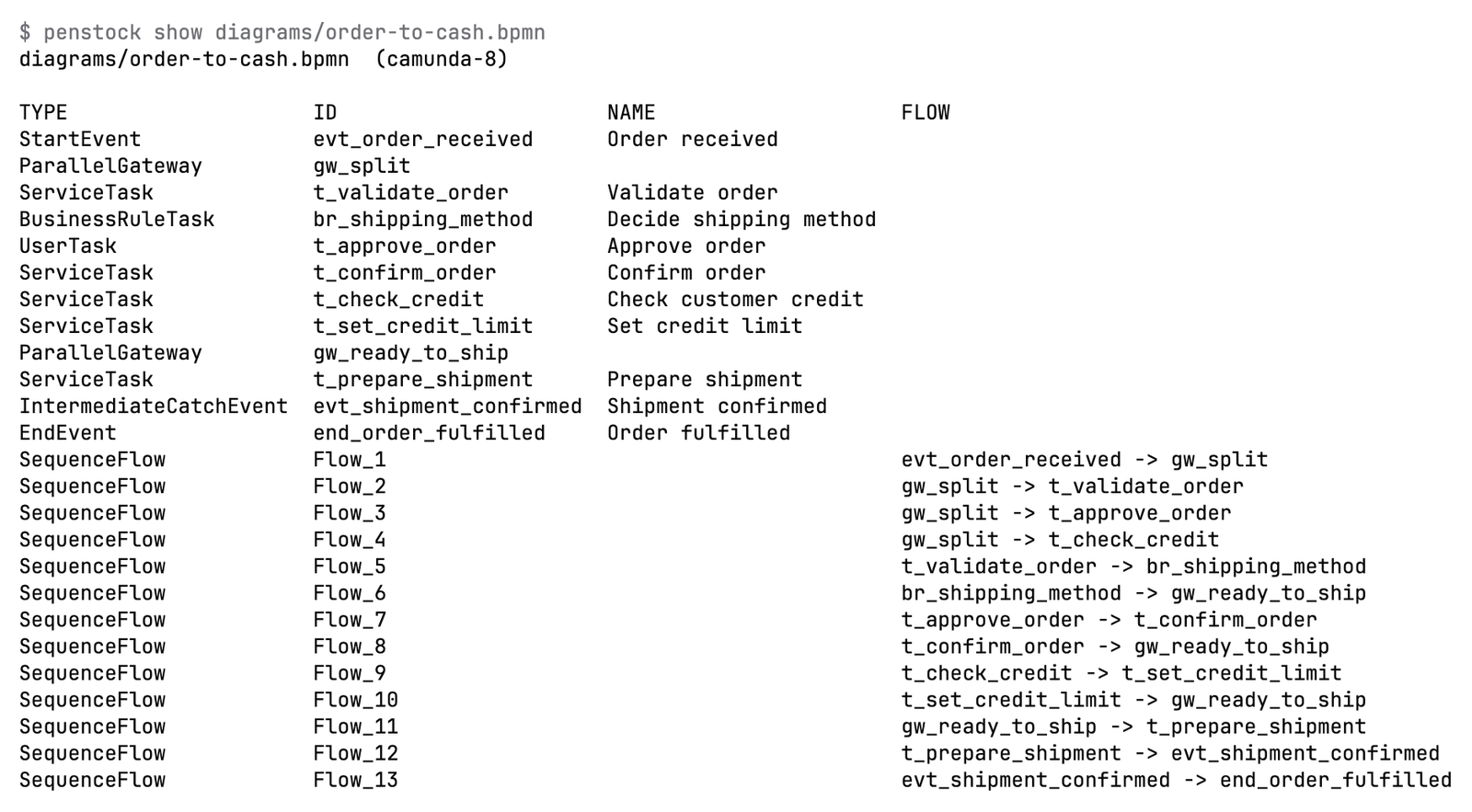

penstock show <file> [--format text|json]

$ penstock show order-process.bpmn
order-process.bpmn  (camunda-8)

StartEvent             order_received "Order received"
ServiceTask            charge_card "Charge card"
                         jobType = charge-card
SequenceFlow           Flow_2  approve_order -> charge_card

Lists a diagram's elements, flows and properties, for a person or for a tool to read. The ids it prints are the ones edit refers to.

Example

$ penstock show src/orders/order.bpmn --format json

Needs: Free

edit

Add, connect, set or remove in a diagram the way the editor would, and refuse an edit that would break it.

penstock edit <file> <add|connect|set|remove> ... [--ops <json>] [--ops-file <file|->] [--schema]

penstock edit orders.bpmn add service-task --after Task_check --name "Reserve stock" --set jobType=reserve-stock
penstock edit orders.bpmn connect Gateway_stock Task_notify --condition "=not(inStock)"
penstock edit orders.bpmn set Task_notify --set assignee=support --input customer==order.customer
penstock edit orders.bpmn remove Task_legacy

Adds, connects, sets or removes in a diagram the way the editor would. A new element is placed and connected by the editor's own modelling, gets an id from your conventions, and carries only properties your engine knows. After an edit the diagram is read back and checked. An edit that would break the drawing (shapes on top of each other, a flow through a shape, a flow torn from its element) is not written, and nothing is written when the operations cannot be read. A crossing is reported but allowed. --ops and --ops-file take the same changes as JSON, which is the contract: several operations apply together or not at all. --schema prints the contract for the file's engine, and an unknown operation, field or property is refused.

Example

$ penstock edit src/orders/order.bpmn add service-task --after Task_check --name Ship

Needs: Pro, Team in a pipeline --schema is free.

license status

Which licence this machine has, and why it is that one.

penstock license [status]

Nobody copies a key: buying opens Polar's checkout and signing in is an e-mail code, and both end with the licence on this machine, in ~/.penstock/license.json, which the editors share. A key covers three machines. license alone is license status: which licence this machine has and why, and during the trial, when it ends. Without a licence it also says how to buy or sign in, and shows the education offer for Free Pro when one is set up. The other commands are below. In a pipeline set PENSTOCK_LICENSE to a Team key. It only counts when CI is set. See Pipelines, reports and the bot and Buying and signing in.

Example

$ penstock license status

Needs: Free

license buy

Buy Penstock. The checkout opens in a browser and the licence reaches this machine by itself once you have paid.

penstock license buy [pro|team]

Opens the checkout in a browser and waits up to an hour for the payment, then asks for the e-mail code. It needs a terminal.

Example

$ penstock license buy pro

Needs: Free

license login

Sign in with the e-mail you bought Penstock with. There is no key to copy.

penstock license login [email]

Signs in with the e-mail you bought Penstock with. When every place is taken it lists the machines, so you can free one.

Example

$ penstock license login you@example.com

Needs: Free

license activate

Use a key you already have.

penstock license activate <key>

Activates a key you already have, typed by hand.

Example

$ penstock license activate PENSTOCK-PRO-...

Needs: Free

license key

The key for PENSTOCK_LICENSE in a pipeline, found again by the e-mail you bought with, because the machine no longer keeps it.

penstock license key [email]

Prints the Team key for PENSTOCK_LICENSE in a pipeline, found again by the e-mail you bought with, because the machine no longer keeps the key. It needs a licence activated on this machine and a terminal, because it signs in with an e-mail code. Only a Team key is printed: keep it secret.

Example

$ penstock license key you@example.com

Needs: Free

license logout

Release this machine's licence so another machine can use it. The same as license deactivate.

penstock license logout

Releases this machine's licence so another machine can use it. license deactivate does the same.

Example

$ penstock license logout

Needs: Free

trust

Let this project's penstock.yaml run shell commands here. A hook of check, layout or deploy asks for this first, and a project with no penstock.yaml is not trusted at all.

penstock trust [path] [--list] [--forget] [--yes]

Lets a project's penstock.yaml run shell commands on this machine. A hook of check, layout or deploy asks for this first, and a project with no penstock.yaml is not trusted at all. In a terminal, penstock trust asks once for the project the path is in, which is the current folder by default, and records it in ~/.penstock/trusted-projects.json, keyed by its real path. The IDE plugin reads and writes the same file on IDE 2024.2 and 2025.1, so a project trusted in one is trusted in both there.

• --list prints every trusted project with the date.
• --forget takes the project back.
• --yes does not ask. It is what a script wants. With no terminal the question is not asked either.

With no trust, a hook does not run. The message names the stage and the exact command that was refused, and says to run penstock trust, or to use --trust-project on check, layout or deploy to allow it for that one run. Inside a pipeline, where CI is set, hooks run without a question, because there the pipeline is the repository's own. A hook gets only four PENSTOCK_* variables: PENSTOCK_FILES, PENSTOCK_ROOT, PENSTOCK_STAGE and PENSTOCK_PROFILE. The licence key, the password and the tokens never reach it.

Example

$ penstock trust --list

Needs: Free

mcp

Serve BPMN diagrams to an AI agent over MCP. Reading a diagram and checking it are free; flow analysis, scenarios, code links and editing need a licence.

penstock mcp [--config]

Serves BPMN diagrams to an AI agent over MCP. --config prints the entry to paste into the agent's settings and stops. The entry goes to standard output and a hint goes to standard error. See The MCP server.

Example

$ penstock mcp --config

Needs: Free list_diagrams, show_diagram and check_diagram are free; the other tools are Pro, Team in a pipeline

connectors

List Camunda's connector templates, or where they are cached on this machine. Downloaded from GitHub at most once a day.

penstock connectors [--refresh]

penstock connectors                              # list the current templates
penstock connectors resolve <id> [version]      # print one template as JSON
penstock connectors --refresh                    # ask GitHub for a newer release now

Lists Camunda's connector templates, or where they are cached on this machine. They are downloaded from GitHub at most once a day and cached in ~/.penstock/connectors/. See Element templates.

Example

$ penstock connectors --refresh

Needs: Free

connectors resolve

Print one connector template, resolved to the version asked for or to the newest one in the cache.

penstock connectors resolve <id> [version]

Prints one connector template, resolved to the version asked for or to the newest one in the cache.

Example

$ penstock connectors resolve http-json

Needs: Free

update

Move the project's wrapper to a version, the latest by default.

penstock update [version] [--distribution <spec>]

Moves the project's wrapper to a version, the latest by default. It downloads the version into ~/.penstock/wrapper/dists, replaces penstockw and penstockw.cmd with the scripts that version ships, and writes the version into penstock/wrapper/penstock-wrapper.properties. Commit those files. It needs a wrapper in the project: run penstock init first. --distribution says where to get Penstock from, a tarball or a registry spec, and is kept in the properties file. penstock wrapper was the old name and still works. See The wrapper.

Example

$ penstock update 26.10.0

Needs: Free

What you see

• Most commands print one line for each file. A line starts with a word: ok, fail, wrote, kept, same, would change or sent.
• Findings are indented under their file.
• The exit code says the outcome. See the exit codes above.

Common problems

An option is ignored.

Check that it belongs to that command. For example --write is for layout and fmt, and --wait for deploy. penstock <command> --help lists what the command reads.

"Unknown command".

Run penstock help. The old names are still accepted and say what replaces them.

The command says a feature is part of Pro.

Run penstock license to see the licence. In a pipeline the feature needs Team. See Buying and signing in.

A hook does not run and the message names penstock trust.

The project is not trusted. Run penstock trust in it, or pass --trust-project for one run.

The engine refuses a run as not a test engine.

Set deployment.forTests: true on the profile, or run against an engine on this machine and confirm it once.

The command says the project is not a Git repository.

diff <ref> and report compare against Git history. Run them inside a checkout.
