Guide / Test and run

Deployment

Deploy sends the diagram you are editing to the engine your project names, after one more click that shows exactly what will go where.

Free Camunda 7, Camunda 8, Operaton or CIB seven

Deploy from the editor

1. Open a diagram, a decision or a form.
2. Press Deploy on the right of the toolbar. A popover opens under the button rather than deploying at once.

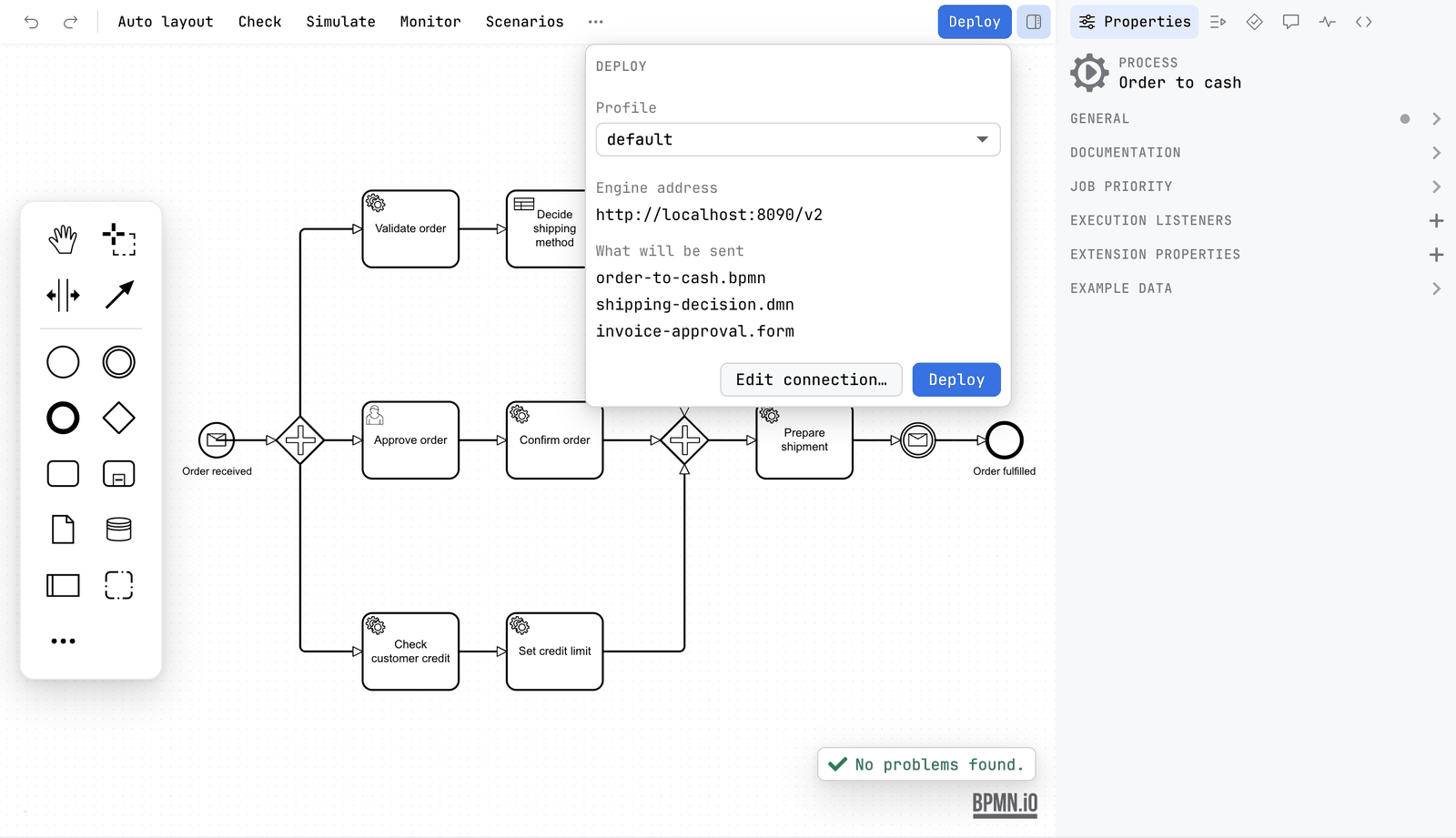

3. Read the popover: which profile is in force, where it will go, and which files will be sent. Pick another profile if you need to, or press Edit connection… to set the address first.
4. Press Deploy. A notification says where the file went, or what the engine answered.

Deploy sends the state of the canvas, including edits that have not reached the disk yet. The DMN and form editors have the same button, and the result is still a notification. Under the Classic BPMN profile there is no deployment target, so there is no button. See Engines.

What the popover tells you

The Connection dialog

It opens from Edit connection… in the popover, and it opens by itself the first time you deploy to a profile that has no engine address, or whose sign-in has no password or secret yet. Its title names the engine and the profile, for example Camunda 8 · prod.

Opened from Edit connection… the dialog offers Save, which only saves, and Save and Deploy. Opened by a deploy, because nothing is set up yet, it offers Save and Deploy alone. If something is missing, the dialog says what is still needed, under the field, with a red outline once you have left it.

Where it is kept

• The address, the sign-in type, the user name, the client id, the token address and the audience go to penstock.local.yaml, under the profile's name when a profile is in force. It stays on your machine.
• The password or client secret goes to the secret store of your tool, once for each profile.
• When you open the dialog again, the field says Saved - type to replace. Leave it empty to keep the secret. Type to replace it. Set Sign in to Not needed and save to remove it.

What is set in penstock.yaml

Everything else about a deployment belongs to the project, not to the dialog. A profile can override any of it for another environment.

deployment:
  url: http://localhost:8080/engine-rest
  name: Order handling
  tenantId: orders
  changedOnly: true

profiles:
  prod:
    deployment:
      url: https://bpm.example.com/engine-rest
      auth:
        type: oauth
        clientId: penstock
        tokenUrl: https://auth.example.com/oauth/token

hooks:
  preDeploy: npm run verify-workers
  postDeploy: ./notify-release.sh

What is sent

One multipart/form-data POST with the file as a single part, named after the file. Its type is application/xml, or application/json for a form. Nothing else from the project goes with it. OAuth makes one more request first: the token request.

Every tool uses the same addresses and settings, so an editor and a pipeline mean the same thing by deployment.url.

How the request is made

The request is made by the host process, not by the browser built into your tool, so no CORS configuration is needed on the engine. The address, the sign-in type, the user name, the client id, the token address and the audience go to penstock.local.yaml, under the profile's name when a profile is in force, which stays on this machine and is added to .gitignore. The password or client secret goes to the secret store of your tool, separately for each profile, and the dialog only says that one is stored rather than reading the value back out. A password: key in penstock.local.yaml is not read; a password comes from PENSTOCK_PASSWORD or from the secret store.

OAuth

Penstock first sends grant_type=client_credentials with the client id and secret to the token address, as a form. It reads access_token from the JSON answer and uses it as a bearer token on the deployment. The audience is sent only if you fill it in. If the token endpoint cannot be reached, answers with an error, or sends no access token, the deployment stops and the error says which. The token request times out after 15 seconds.

On the command line use auth.type: oauth and set the secret in PENSTOCK_CLIENT_SECRET. PENSTOCK_TOKEN, if set, is used as a bearer token instead. PENSTOCK_PASSWORD is the password for basic sign-in.

Hooks

preDeploy and postDeploy run around every deployment, from the editor and from the command line. They run in the project root and see PENSTOCK_FILES, PENSTOCK_ROOT, PENSTOCK_STAGE and PENSTOCK_PROFILE. A preDeploy that fails stops the deployment, and nothing is sent. postDeploy runs after a successful one. Where a tool has a notion of a trusted project, hooks run only in a trusted project. In a project that is not trusted, a configured preDeploy is not run, and the deployment stops rather than go ahead without it.

Deploy more than one file

Deploying sends the files of a project grouped by the target each folder asks for: files from folders whose penstock.yaml names another engine go to that engine. You can also send every diagram to one profile at once, after a confirmation.

$ penstock deploy . --dry-run
would send 3 file(s) to http://localhost:8080/v2/deployments as "order-example"
      src/main/resources/approve-order.form
      src/main/resources/order-process.bpmn
      src/main/resources/shipping-method.dmn

Feedback and errors

What you see

• A popover under the Deploy button, then a notification: Deployed order-process.bpmn as order-process v3 on http://localhost:8080.
• In the engine's own web application, the process shows a new version, or the same one when nothing changed and changedOnly is on.

Common problems

Deploy is not on the toolbar.

The engine is Classic, or not set. Set engine in penstock.yaml. See Engines.

Every deploy is a new version.

The engine's duplicate check matches by name. Keep deployment.name the same, and leave changedOnly on.

The editor says 404 or the wrong path on Camunda 8.

Use the address of the REST API. Penstock adds /v2/deployments. If your address already ends in /v2, that is fine too.

The engine has a private certificate.

Penstock does not skip certificate checks. Trust the certificate in the runtime of your tool. See the troubleshooting page of your tool.

A wrong password is saved.

Press Deploy, then Edit connection…, type the right one and save.

There is no Deploy button.

The profile is Classic BPMN, which has no engine behind it. Set engine in penstock.yaml.

Nothing is deployed when I press Deploy.

It opens the popover on purpose. Press Deploy in the popover to send.
