Comments

Leave a comment on any element of a diagram. It is kept in the file, so it travels with the diagram through version control and nothing it says changes what the process does.

Free

What it is

A comment is a short note on one element of a diagram: what the step is for, what is still missing, a question for the next person. Comments are free. They are kept in the diagram file itself, inside the element they belong to, so a branch, a pull request and a checkout carry them like any other change to the diagram.

Comments are in the BPMN editor. A decision and a form have no Comments tab.

Add a comment

Select an element on the canvas.
Open the Comments tab of the sidebar. It shows the thread of that element under the element's name.
Type in the field Add a comment. The line under it says who signs the comment: Signed and your name, or without a name.
Press Add comment. The button stays off until there is text.

The name is the one your version control has for the project. You can leave the name empty, and the comment is then shown as Anonymous. Each comment shows who wrote it and when.

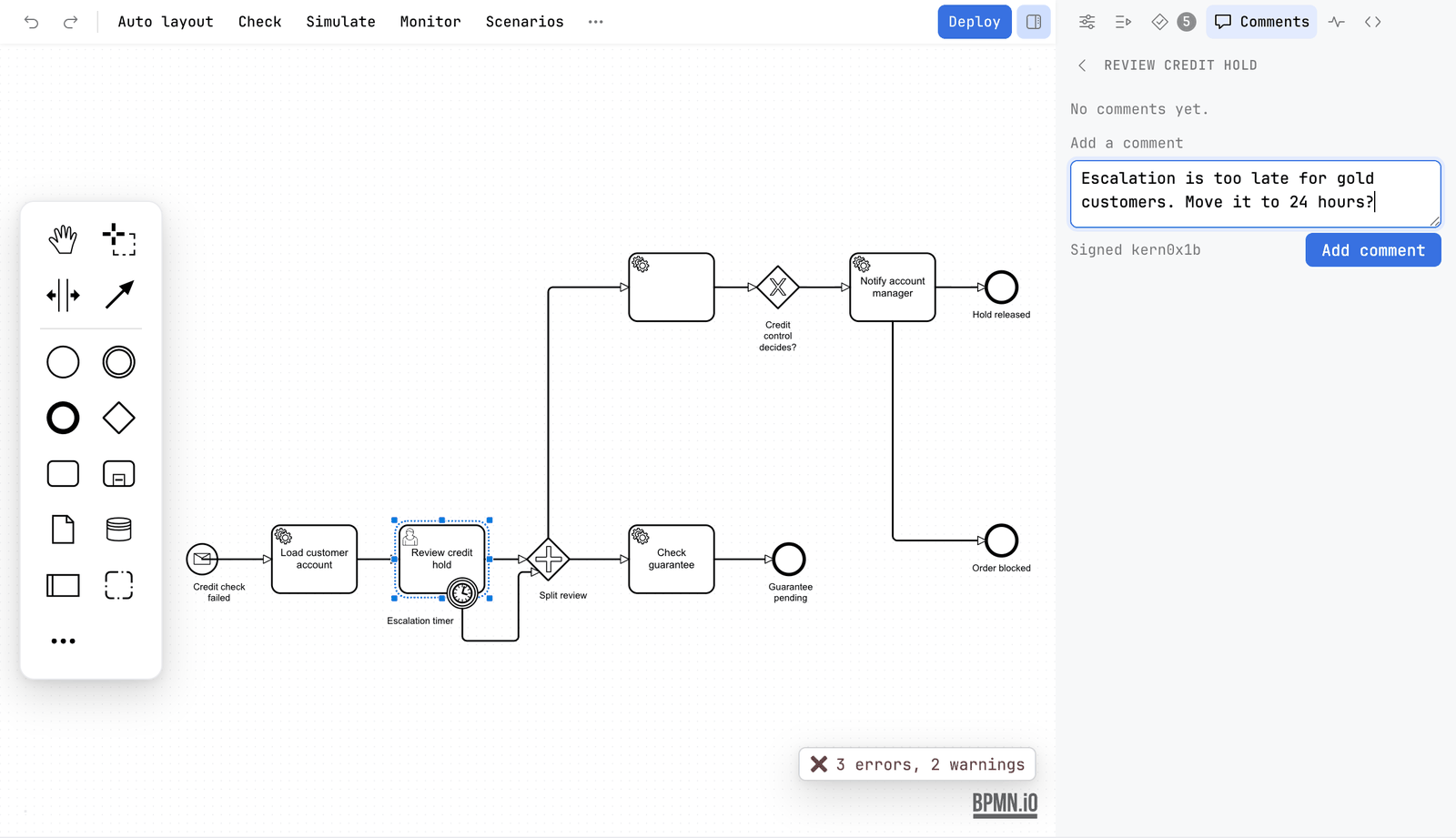

The Comments tab for Review credit hold with No comments yet. The field Add a comment holds the text Escalation is too late for gold customers. Move it to 24 hours? The line under it says Signed kern0x1b, and Add comment is a blue button — A comment typed into Add a comment. The line under the field says who signs it.

Work with a comment

Edit	Changes the text, with Save and Cancel. It is offered only on a comment that is yours, that is one signed with your name.
Resolve	Marks the comment as dealt with. A resolved comment is labelled Resolved and stops counting as open.
Reopen	Takes a resolved comment back to open.
Delete	Removes the comment from the file.

Adding, editing, resolving, reopening and deleting a comment are each one step of Undo, like any other change to the diagram.

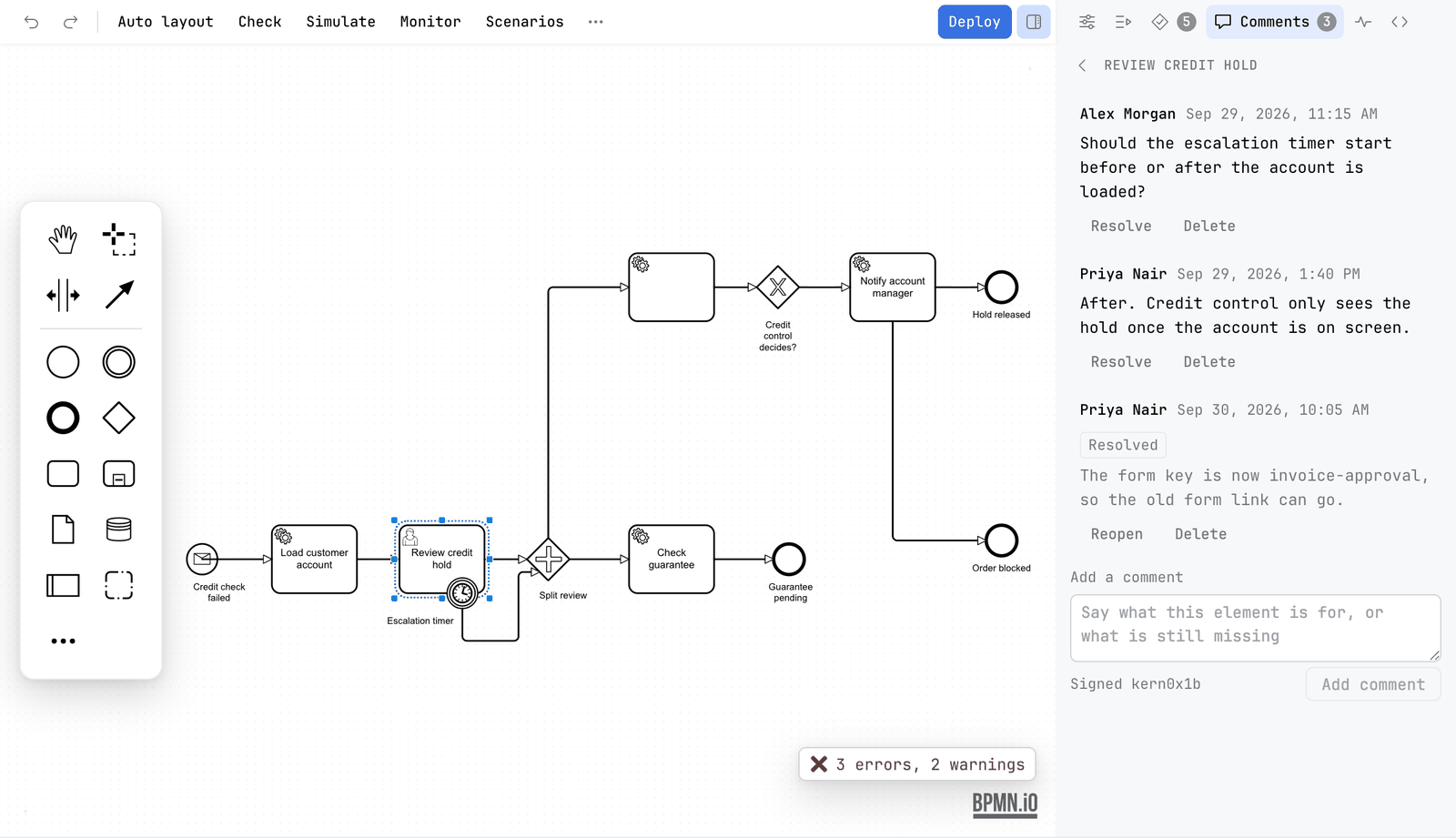

The Comments tab for the element Review credit hold, opened with a back arrow. Two comments, by Alex Morgan and Priya Nair, each have Resolve and Delete. A third, by Priya Nair, is marked Resolved and has Reopen and Delete. Under them is the field Add a comment with the line Signed kern0x1b and an Add comment button that is off — The thread of one element. Open comments offer Resolve and Delete, a resolved one is labelled Resolved and offers Reopen and Delete.

The list of the whole diagram

With nothing selected, the Comments tab lists every element of the diagram that has a comment, the open ones first. Each element shows its thread, and the line above it counts what is still open, for example 2 open comments.

Click an element's name to bring it into view on the canvas.
Resolved comments are hidden. Show resolved brings them back, with their count, and the same button then says Hide resolved.
Select an element and the tab shows only its thread, with a ‹ back to the list.
With no comment at all the tab says No comments yet. and Select an element and add a comment to it.

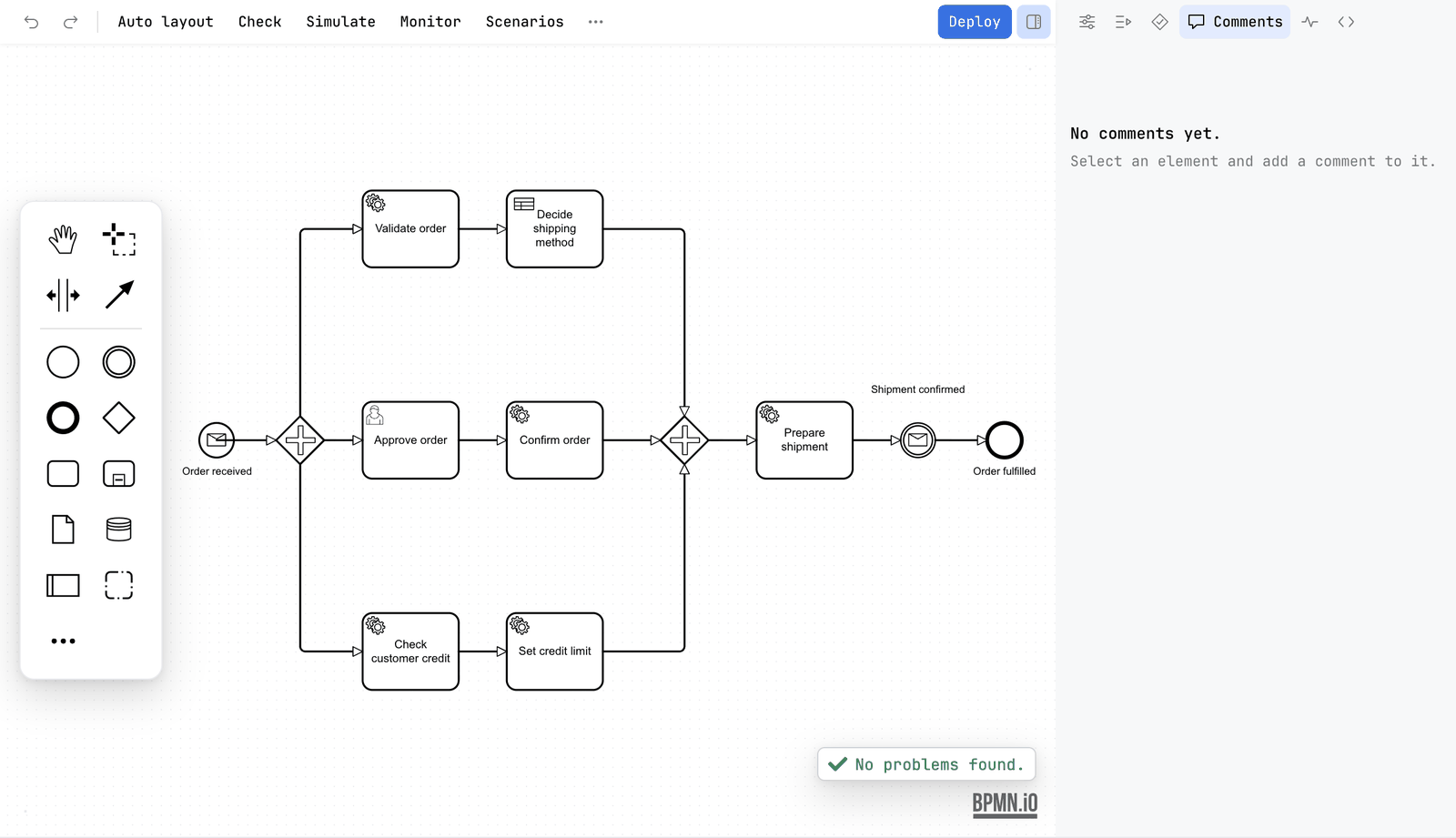

The Comments tab of the sidebar with nothing selected. It says No comments yet and Select an element and add a comment to it, and the Comments tab is the open tab — A diagram with no comment. The tab says so and tells you what to do.

A label, and anything that is not a BPMN element, cannot take comments. The tab says so when you select one.

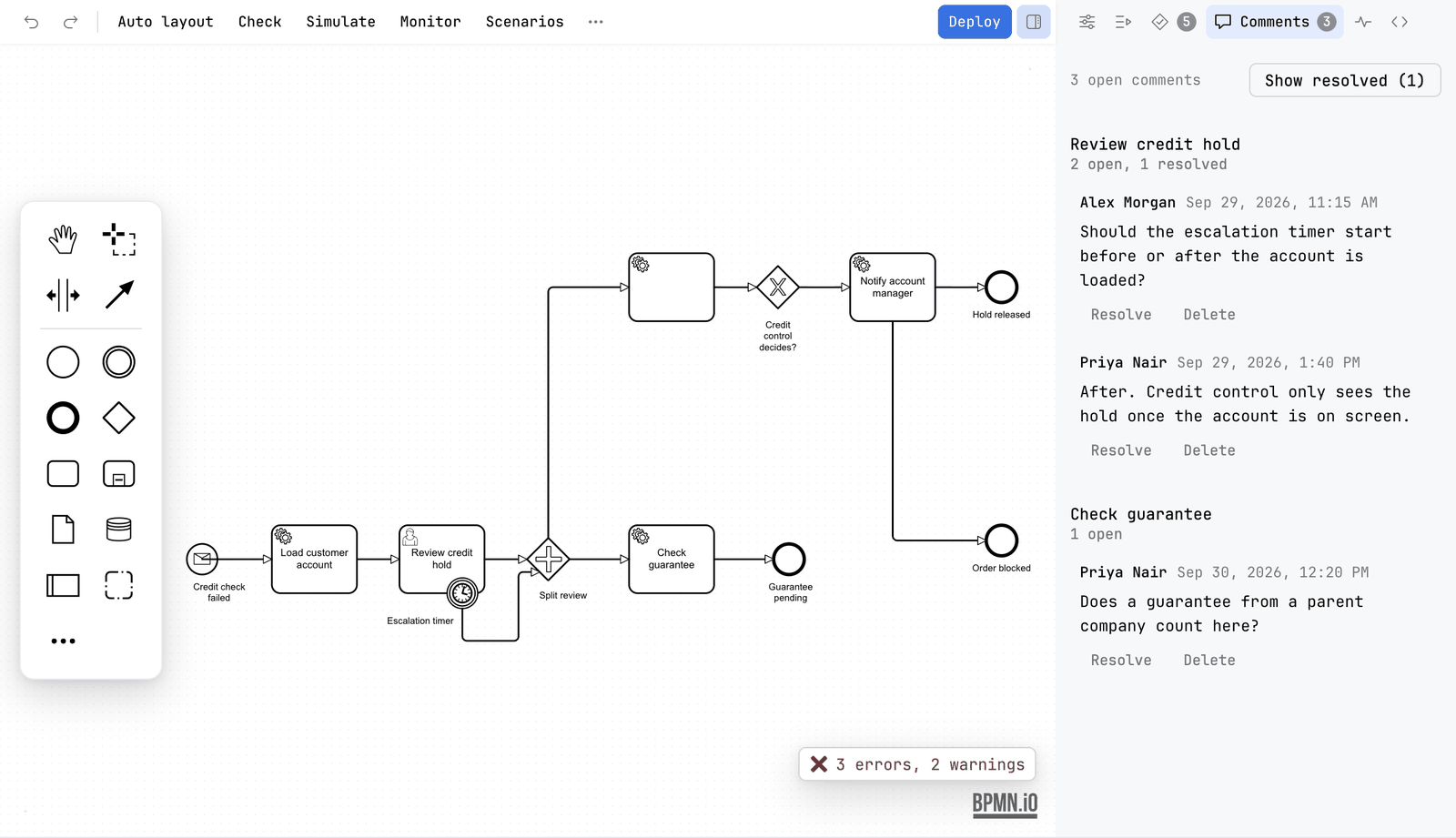

The Comments tab with nothing selected. It says 3 open comments and has a button Show resolved (1). Review credit hold is listed with 2 open, 1 resolved and two comments, and Check guarantee with 1 open and one comment — The list of the whole diagram: the open comments grouped by element, and Show resolved with its count.

The badges on the canvas

A small number on the corner of an element says how many comments on it are still open. Click it and the Comments tab opens on that element. The Comments tab itself carries the number of open comments in the whole diagram.

Show comment badges in the More menu, under View, turns the numbers on the canvas off and on. It changes only what you see. The comments stay in the file. Comments are not drawn on a picture from Export.

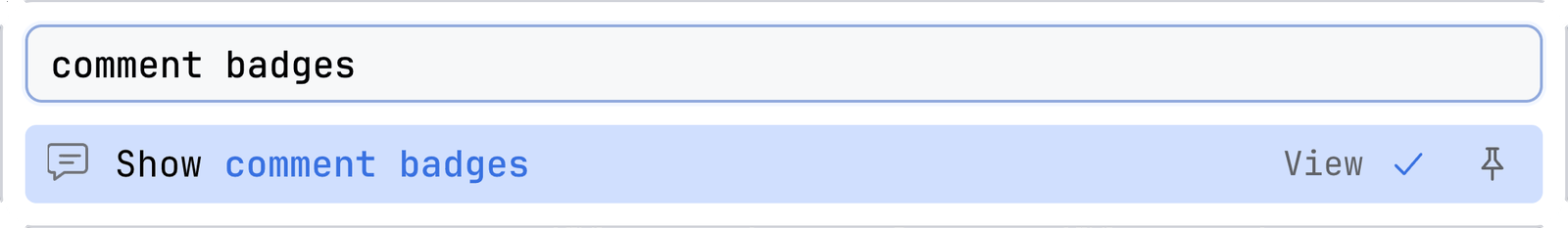

The command palette with comment badges typed in the field. One action is listed, Show comment badges, in the section View, with a tick and a pin at its right — Show comment badges found in the palette, under View. The tick means the badges are on.

Where they are kept

A comment is written into a penstock extension element inside the element it belongs to. Camunda Modeler and both engines ignore that element, so nothing a comment says changes how the process runs. Because it is part of the file, a comment is part of the diff in a pull request. See Files Penstock reads and writes.

The element lives in its own namespace, https://github.com/kern0x1b/penstock-release/ns/comments/1.0, with the prefix penstock. It sits in the extensionElements of the element that is commented, next to whatever else is there, for example zeebe: or camunda: content. For a task that carries one open and one resolved comment the file holds this:

<bpmn:userTask id="Activity_review" name="Review order">
  <bpmn:extensionElements>
    <penstock:comments>
      <penstock:comment id="Comment_1" author="Ada" date="2026-09-20T09:00:00.000Z" resolved="true">Which limit applies here?</penstock:comment>
      <penstock:comment id="Comment_2" author="Grace" date="2026-09-21T14:30:00.000Z">Limit is 500, see the policy page.</penstock:comment>
    </penstock:comments>
  </bpmn:extensionElements>
</bpmn:userTask>

`id`	Made by the editor: `Comment_` and the next free number on that element.
`author`	The name of the project's version control, taken when the comment is added. Left out when there is no name.
`date`	The moment the comment was added, as an ISO 8601 time in UTC. Editing the text does not change it.
`resolved`	Present, as `true`, on a resolved comment.
Text	The body of the element.

Deleting the last comment of an element removes the penstock:comments element, and the extensionElements around it when nothing else is in it.

What reads them

The BPMN editor reads and writes them. That is the only place they are shown.
The command line and the MCP tools do not list or change comments. penstock check and the other commands leave them in the file as they are.
A comment is a note for people. The engines ignore the element, so it has no effect on a run.

What you see

The thread of the selected element in the Comments tab, with the field that adds a comment.
A number on the corner of each element that has an open comment.
A count on the Comments tab.

Common problems

There is no Comments tab.: Comments are for BPMN diagrams. A decision and a form do not have them. In a diagram, the sidebar may be hidden: press the sidebar toggle at the right of the toolbar.
There is no Edit button on a comment.: Edit is only on your own comments. Resolve, Reopen and Delete are on every comment.
The numbers on the canvas are gone.: Show comment badges is off. Turn it on in the More menu.
"This element cannot take comments.": The selection is a label or not a BPMN element. Select the shape or the connection itself.
My comment does not show in the exported picture.: Right. Comments are not drawn on a picture.
