The form editor

The form editor builds the screens a user sees in a user task, and saves them as a Camunda Form.

Free

What it is

A Camunda Form is a JSON file with the extension .form. A user task shows it to a person. The editor is built on form-js. The file is saved as you edit.

Open and edit a form

Open a .form file. Penstock takes only files that are Camunda Forms. A form file of another tool is left alone.
The palette of fields is a floating island beside the canvas, the form in the middle, and the properties in the Properties tab of the sidebar on the right.
Drag a field onto the form. Give it a label, and a key. The key is the name of the process variable the field writes.
Press Deploy to send it to the engine, with the same settings a diagram uses.

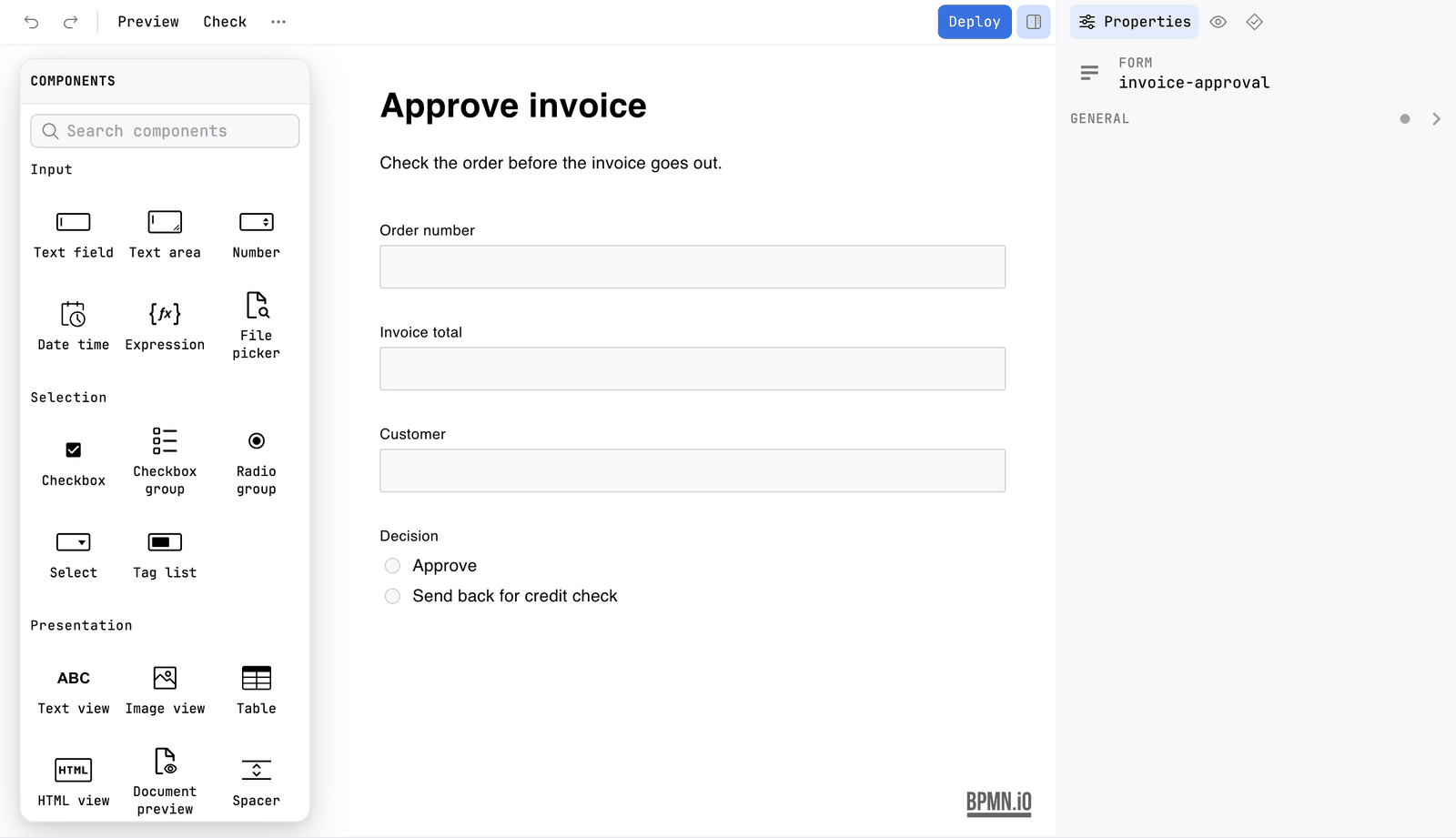

The invoice approval form in the form editor. The Components palette is a floating island at the left with the groups Input, Selection and Presentation. The form Approve invoice is in the middle, and the sidebar shows Properties for the form invoice-approval — The Components palette beside the form, with nothing selected.

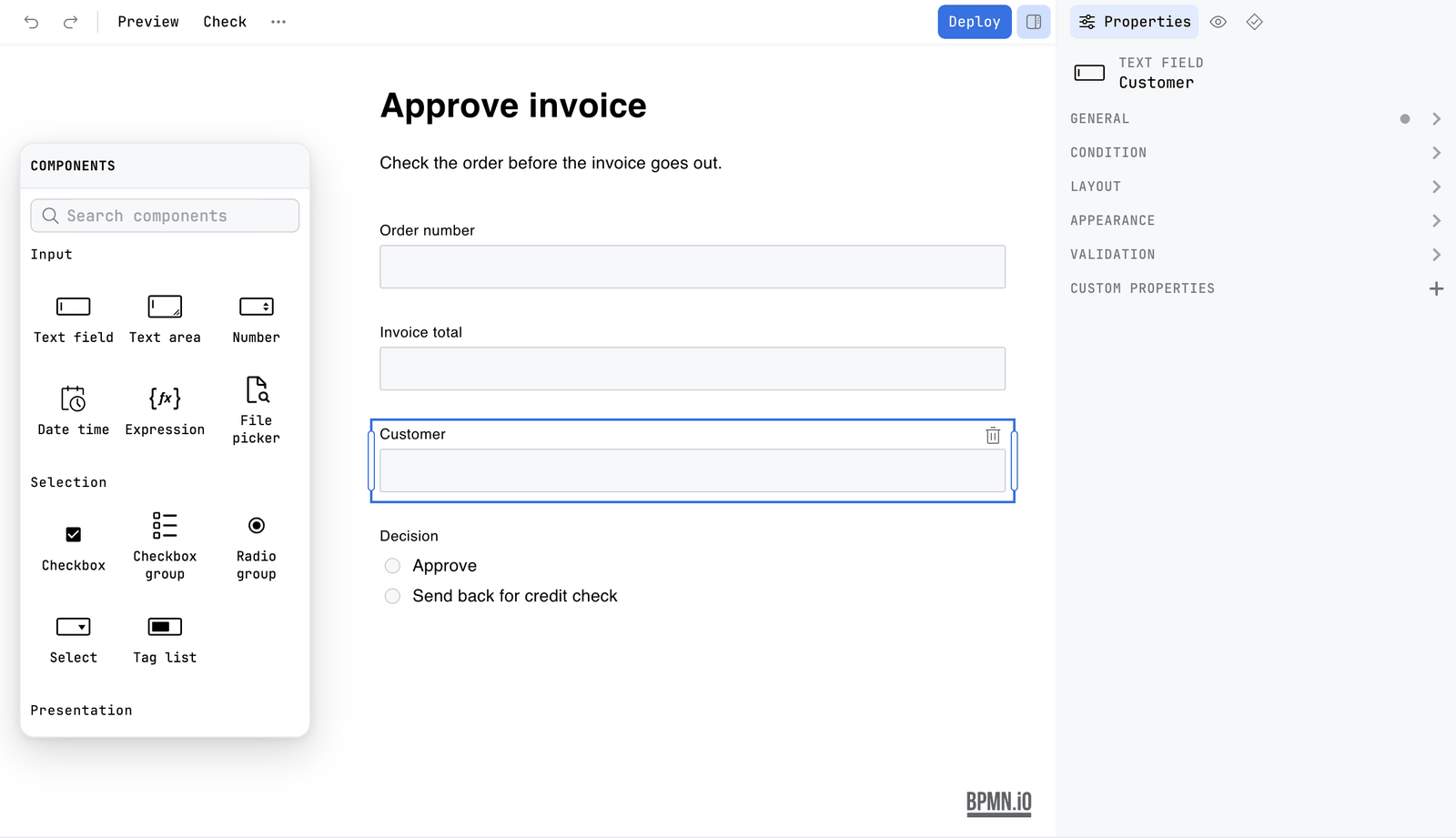

The Customer field of the form selected, with a blue frame and a bin icon on it. The sidebar shows Properties for a text field named Customer, with the groups General, Condition, Layout, Appearance, Validation and Custom properties — A field selected. Its label and key are in General, and the other groups are beside it.

Preview	Opens the Preview tab of the sidebar, which shows the form as a user sees it. See below.
Check	Opens the Problems tab. The form check is lint, so it is free.
Deploy	Sends the form to the engine. See Deployment.
More	Holds Share as HTML…. See Share as HTML.

Preview

Press Preview on the toolbar to try the form with sample data. The Preview tab of the sidebar opens beside the canvas and shows three things:

The form as a user sees it.
Input data: the JSON the form is given. It starts as sample data made from the fields: a text, a number, the first option of a choice, one row of a dynamic list, a group under its path. It follows the form as you edit it, until you write your own. If what you wrote is not valid JSON, the preview says what is wrong.
Output data: the JSON the form would submit. Next to its heading, a count such as 2 fields need attention says how many fields are not valid.

Before the form has been read, the tab says Nothing to preview yet. and fills in as soon as it is read. The palette is hidden while the preview is open, and its tooltip says so. It is why the canvas never grows a fourth column for the preview. The form-js logo stays visible.

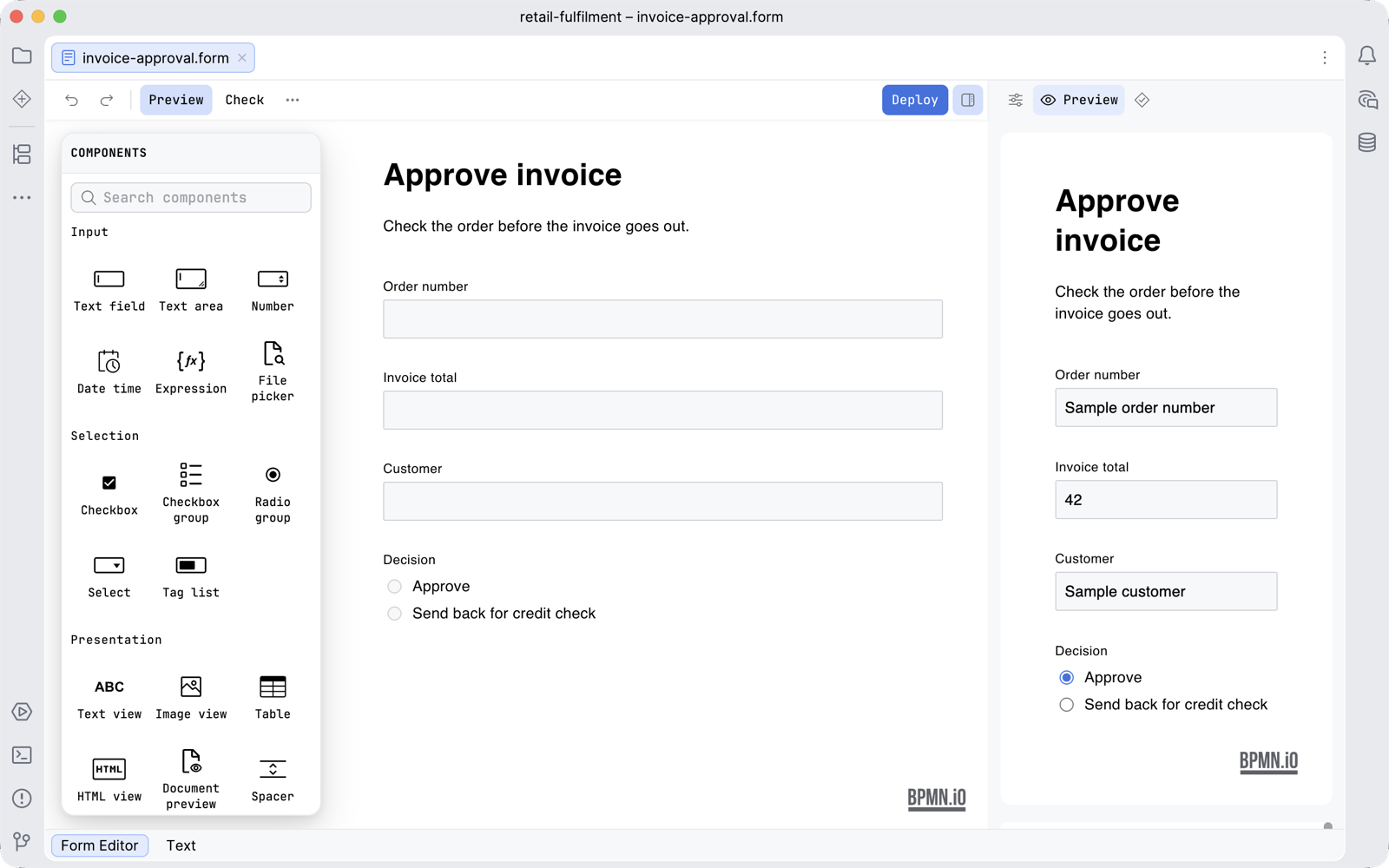

The invoice approval form open in the form editor, with the Components palette at the left of the canvas and the Preview tab of the sidebar showing the same form as a user sees it, filled with sample values — The form on the canvas with its Components palette, and the Preview tab in the sidebar showing it as a user sees it.

The sidebar of a form has three tabs, in this order: Properties, the settings of the selected field; Preview, described above; and Problems, the list of the form check. Until you press Check the Problems tab says Check the form to see problems here. If the file cannot be read, it says This form could not be read, so there is nothing to check, and the reason is on the canvas.

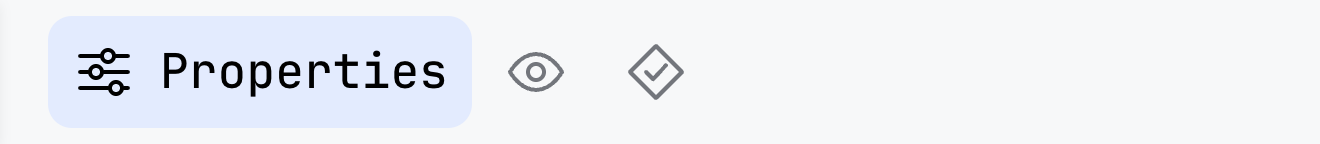

The tab row of a form: Properties, open and named, then two icon tabs, Preview and Problems — The tab row of a form.

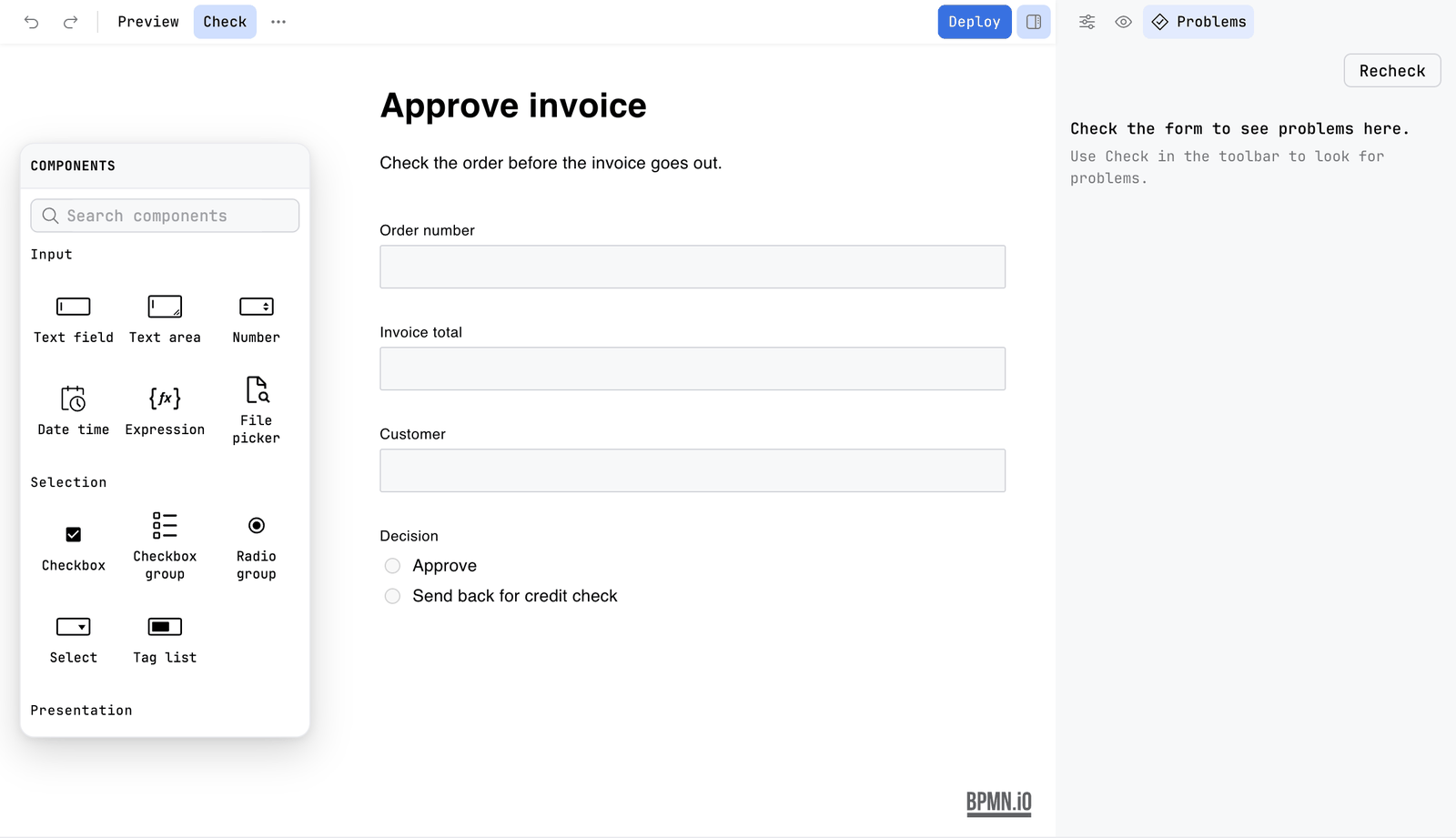

The Problems tab of a form that has not been checked. A Recheck button is at the top right and the tab says Check the form to see problems here, and Use Check in the toolbar to look for problems — The Problems tab before Check has been pressed.

The form check

The form check is lint, so it is free: no licence is asked for, in the editor or in penstock check. The decision editor's overlap and gap analysis is the one that is Pro.

Press Check. A card called Form check opens over the canvas with the findings. Show all opens the Problems tab, which holds the whole list. While that tab is open the card stays away.
Click a finding to select the field and open its properties.
Press Check again to put the card away. Recheck runs the check again.

Finding	Rule
Two fields write the same variable, or a field writes a group's path. Tasklist refuses to open such a form.	form/key-clash
A field writes no variable	form/no-key
An option list offers one value twice	form/repeated-option
An input has no label	form/no-label

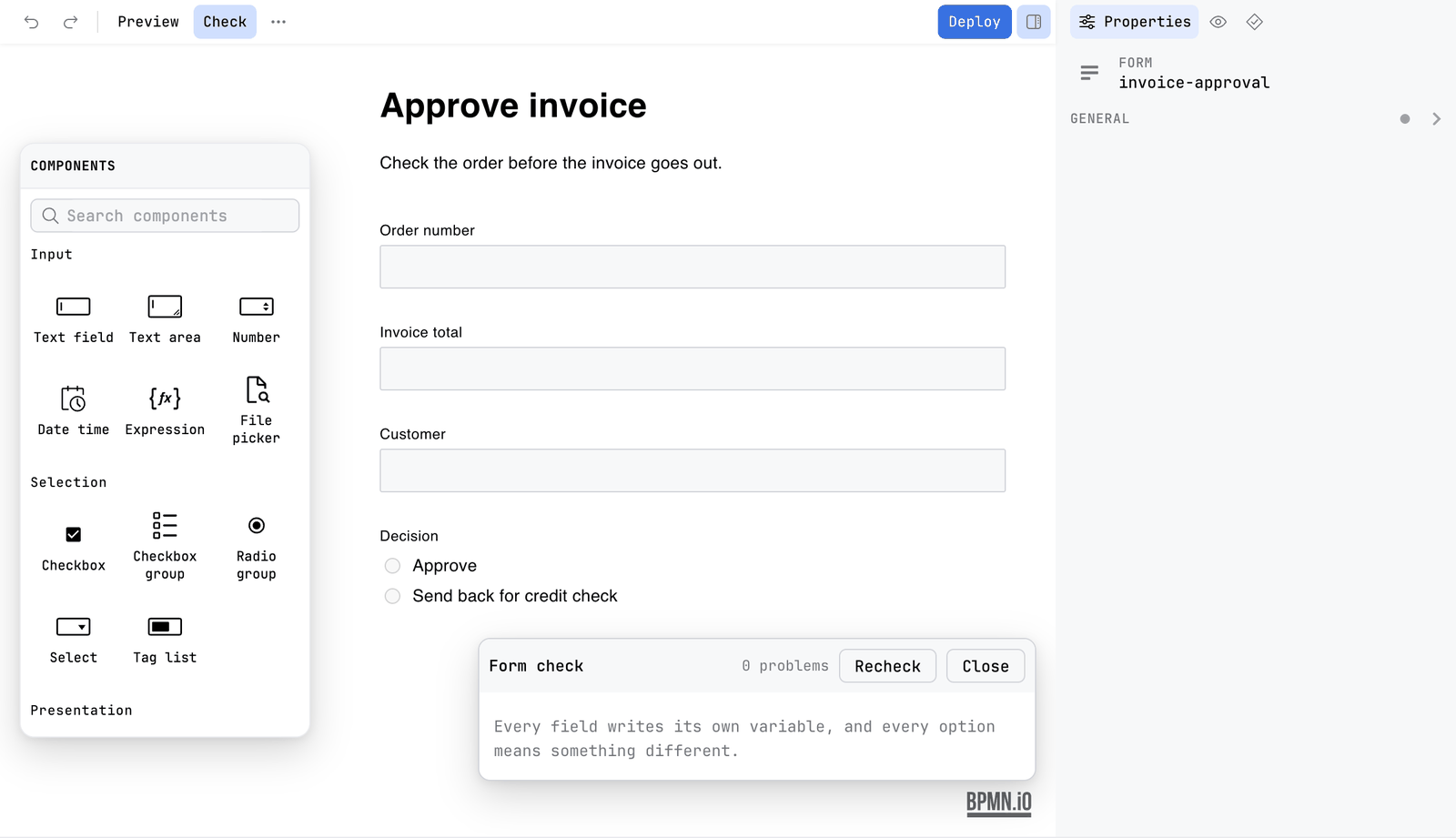

The invoice approval form with the Form check card open at the bottom right. It reads 0 problems, with Recheck and Close, and the line Every field writes its own variable, and every option means something different — The card of a form with nothing to report.

When all is well the card says Every field writes its own variable, and every option means something different. The same check runs on every form when you check the whole project. See Diagram check.

Forms and the rest of the project

A user task links to a form by its id. If no .form file has that id, the check reports code/unknown-form.
penstock docs writes a page for each form with the variable every field writes, whether it is required, its options and when it is hidden.
The project model lists forms and the tasks that use them.

What you see

The palette of fields beside the canvas, the form in the middle, its properties in the Properties tab of the sidebar.
After Check, a card called Form check with a count of problems, or the line Every field writes its own variable, and every option means something different.
